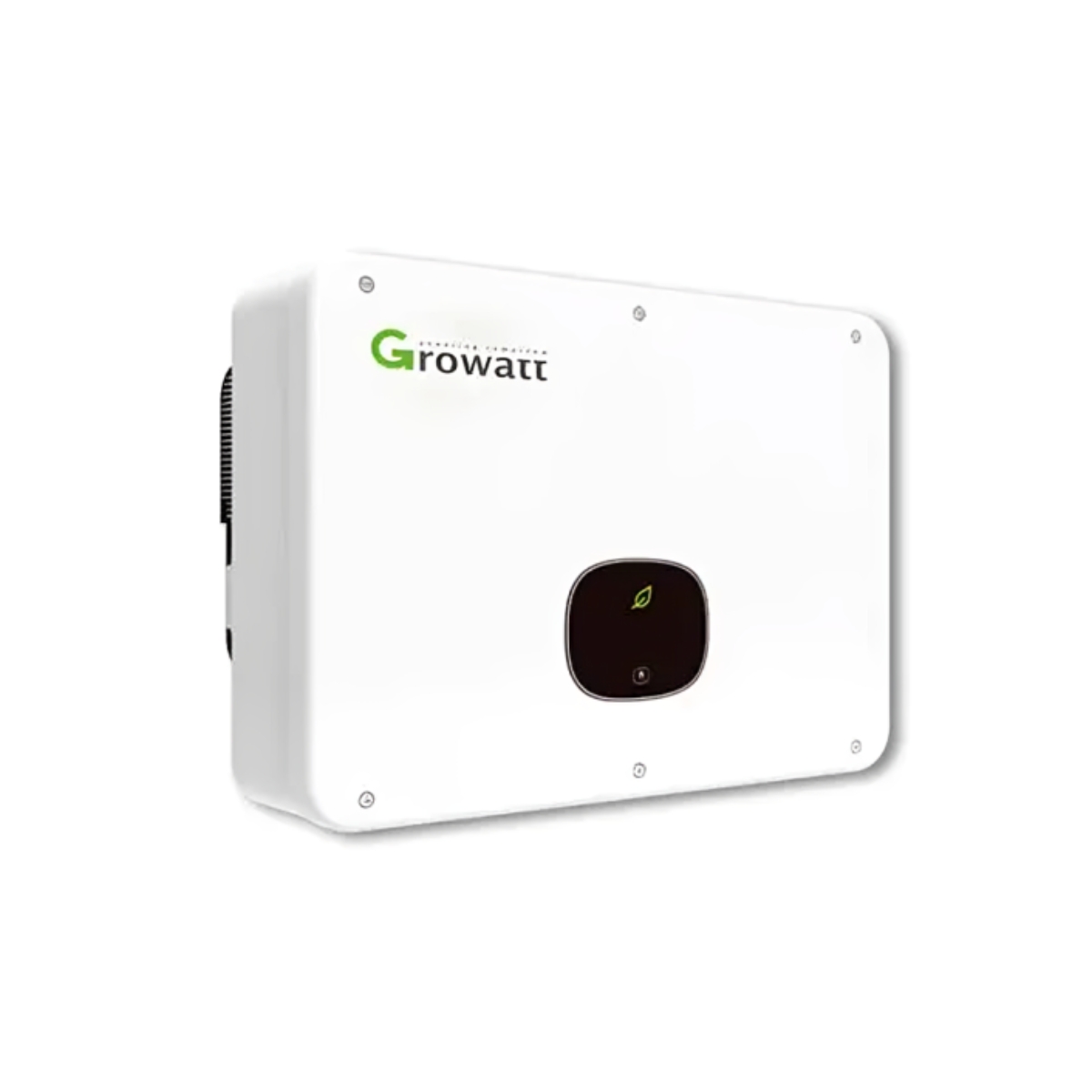

Growatt 20KW MID20KTL3-X On-Grid Solar Inverter

The Growatt 20KW MID20KTL3-X is a high-performance three-phase string inverter designed for residential and commercial solar installations. With a maximum efficiency of 98.75% and dual MPPT trackers, this inverter ensures optimal energy conversion and enhanced reliability in varying solar conditions.

Key Features:

✅ High Efficiency: Achieves up to 98.75% efficiency, minimizing energy loss and maximizing power generation.
✅ Wide MPPT Voltage Range: Operates efficiently between 160V and 1000V, optimizing energy capture under different sunlight conditions.
✅ Dual MPPT Design: Allows flexible panel configurations, improving performance in shaded or uneven exposure scenarios.
✅ Smart Monitoring & Control: Compatible with WiFi, GPRS, LAN, and RS485 for real-time tracking and remote system management.
✅ Advanced Cooling System: Smart air cooling technology ensures stable operation, even in high-temperature environments.
✅ Robust Protection Features: Includes DC reverse polarity protection, AC/DC surge protection, insulation resistance monitoring, anti-islanding protection, and AC short-circuit protection for enhanced safety.
✅ Compact & Lightweight: 40% smaller & lighter than traditional inverters, making installation easier.
✅ Durable & Weatherproof: IP65-rated enclosure ensures protection against dust, water, and harsh environmental conditions.
✅ Data Storage Up to 25 Years: Retains performance history for long-term analysis and system optimization.
✅ User-Friendly Interface: Features an OLED touch display with LED indicators, plus app-based remote access.

Specifications:

🔹 Rated Power Output: 20 kW
🔹 Max. PV Input Power: 30,000W
🔹 Input Voltage Range: 160V - 1000V MPPT range
🔹 Max. Output Current: 27.4A
🔹 Dimensions: 525mm (W) × 395mm (H) × 222mm (D)
🔹 Weight: 23 kg
🔹 Cooling Method: Smart Air Cooling
🔹 Protection Rating: IP65 (dustproof & waterproof)
🔹 Altitude Support: Up to 4000m
🔹 Operating Temperature: -25°C to +60°C
🔹 Warranty: 5 Years (Extendable to 10 Years)

The Growatt 20KW MID20KTL3-X is the perfect choice for businesses and homeowners looking for a high-efficiency, durable, and smart solar inverter. With advanced monitoring, protection, and energy optimization, this inverter ensures reliable performance for years to come.
