GROWATT 40KW SOLAR INVERTER
Growatt 40KW MAC40KTL3-X
✔ 98.7% Efficiency: High-performance energy conversion.
✔ Wide MPPT Range: 200V – 1000V for efficient solar tracking.
✔ Smart Diagnosis: Built-in system analysis and fault detection.
✔ Strong Protection: AC/DC surge, ground fault, and short-circuit safety.
✔ Smart Air Cooling: Ensures stable operation and longevity.
₨ 545,000

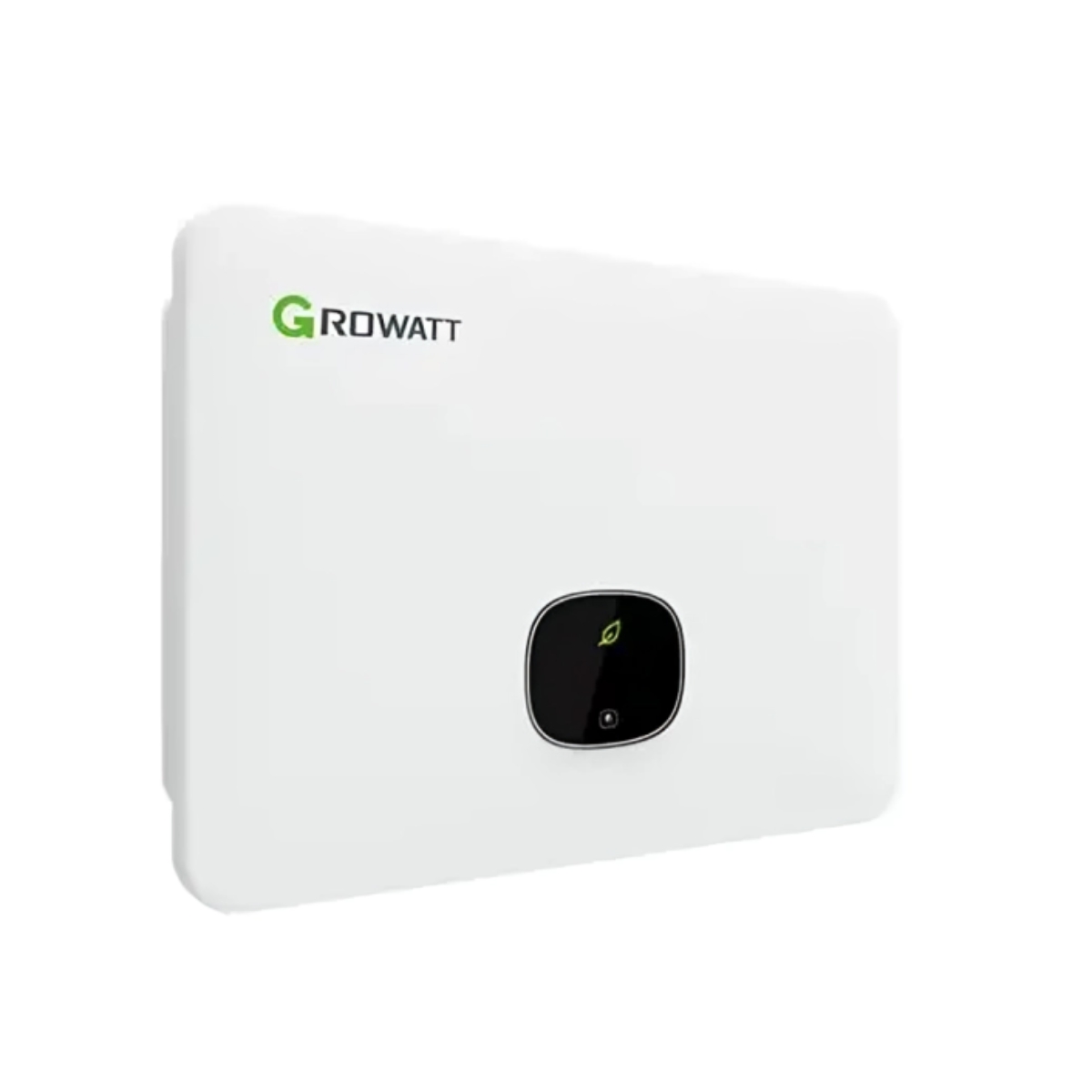

Growatt 40KW MAC40KTL3-X On-Grid Solar Inverter
The Growatt 40KW MAC40KTL3-X is a reliable and efficient three-phase solar inverter for large-scale solar installations. With 98.7% peak efficiency, 3 MPPTs, and advanced monitoring, it offers superior energy conversion and long-term performance.
Key Features:
✅ 98.7% Efficiency: Delivers high power output with minimal energy loss.
✅ 3 MPPTs: Supports diverse panel configurations and partial shading.
✅ Smart Diagnosis: Built-in system analysis for fault detection.
✅ Advanced Protection: AC/DC surge, ground fault, and insulation resistance monitoring.
✅ Smart Air Cooling: Ensures stable operation in high temperatures.
Specifications:
🔹 Rated Power Output: 40 kW
🔹 Max. PV Input Power: 60,000W
🔹 MPPT Voltage Range: 200V - 1000V
🔹 Max. Output Current: 64.4A
🔹 IP65-Rated: Dust & Water Resistant
🔹 Operating Temperature: -25°C to +60°C
🔹 Weight: 52 kg
🔹 Dimensions: 680mm (W) × 508mm (H) × 281mm (D)
🔹 Warranty: 5 Years (Extendable to 10 Years)
📄 Download Datasheet:
